View or Change Wash Status

From the Wash Status tab, you can view or change the wash status of a device:  open or close.  You can manually open or close the gate as well.

NOTE: Wash Status is only available from the site level logon.

  1. At WashConnect login, select a Site.
  2. On the Monitoring System menu, select Wash Status.
  3. In the Site box, select the Sites.

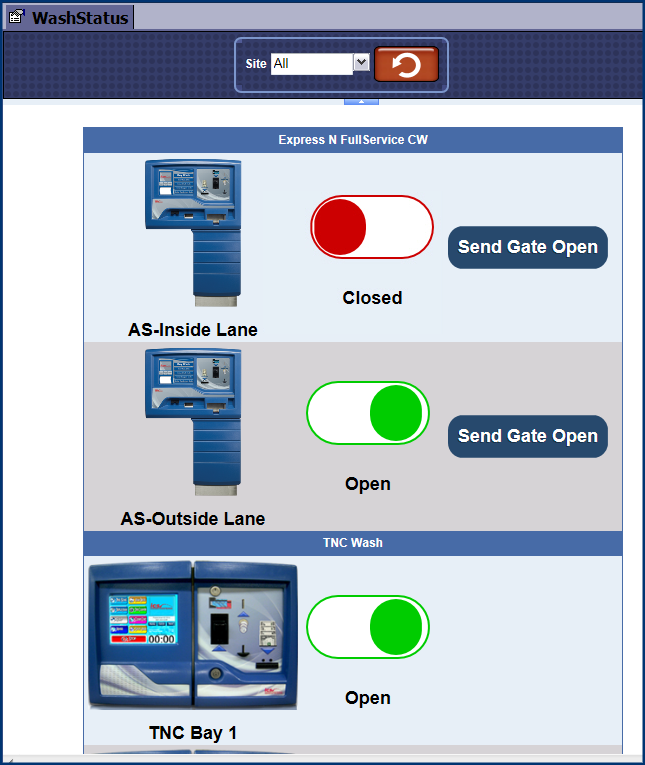

The status of the Auto Sentry and Touch 'N Clean terminals are displayed as open or closed.

  1. Locate the Auto Sentry to change the status, and click on the Closed or Open slider depending on the current status.
  2. You can manually open the gate(s), if necessary, by selecting the Send Open Gate button next to the appropriate Auto Sentry








    NOTES:

    • This will only work if your software is configured for software control of the Wash Open inputs.  If hardware switches are wired in, then you would use those to control the devices.
    • The Touch 'N Clean status can only viewed, and not be not modified from this tab.

     See  Send Gate Open to open the gate of the specified Auto Sentry.
